The BVO is a double dump equipment in the category of the Minicompattatoris and compactors The two dumps make this vehicle versatile and performing. the compacting dump has a capaciti of 5.5 cubic meters while the simple dump has a capacity of 3,s cubic meters.
Характеристики
The AZIMUT BVO range of attachment supplied by TECNOINDUSTRIE MERLO SpA are systems designed to meet the needs of door-to-door collection enabling two diff erent types of waste to be handled with the same equipment. BVO machines comprise:

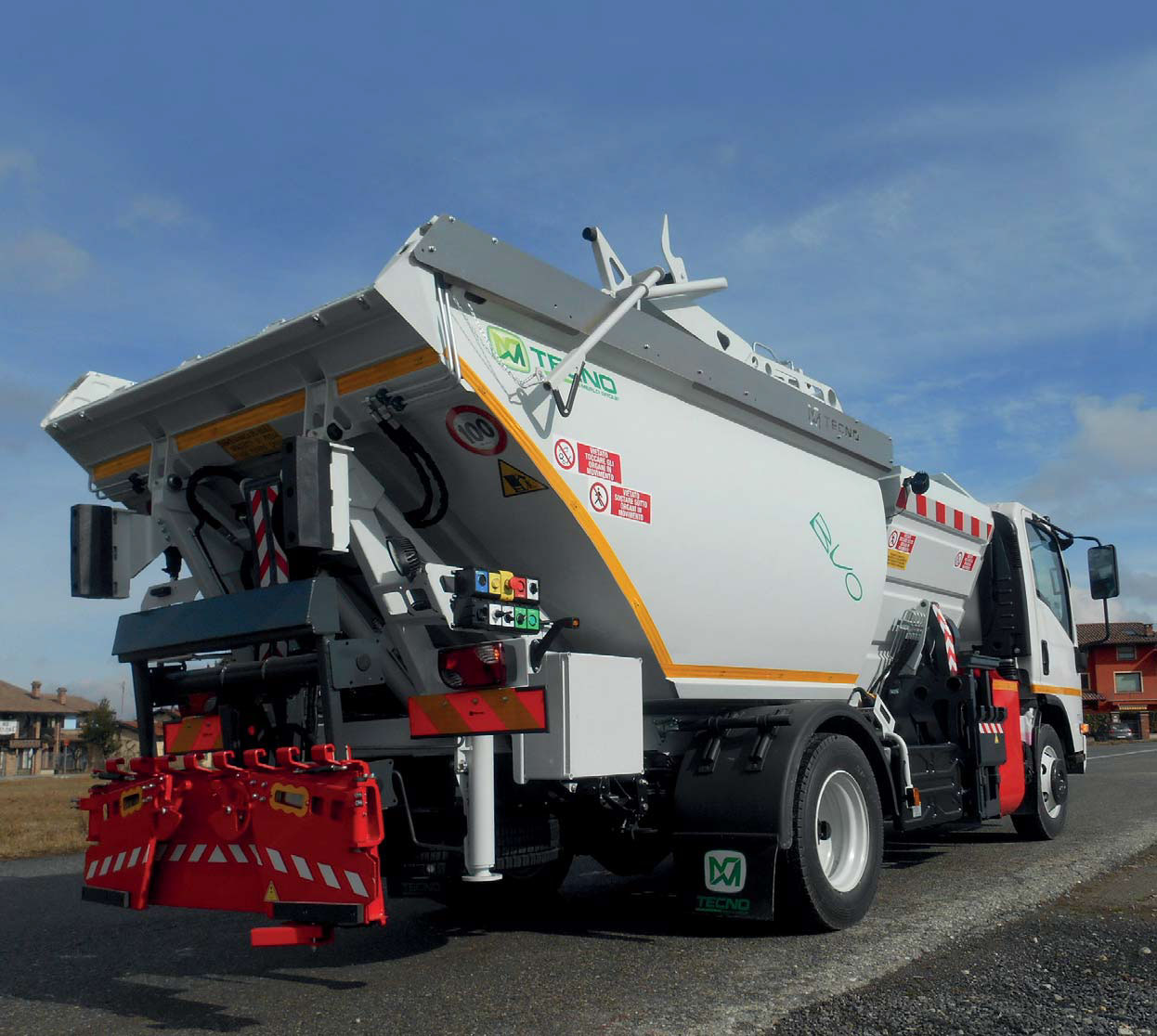

- Rear-loading mini-compactor with unloading by tipping up the body, fitted with a single articulated blade compaction system comprising a rotary blade and a slide running on straight guideways. The central rear part of theattachment can be fitted with the bin pick-up, lifting and emptying system (optional) with a possible load-assist device.

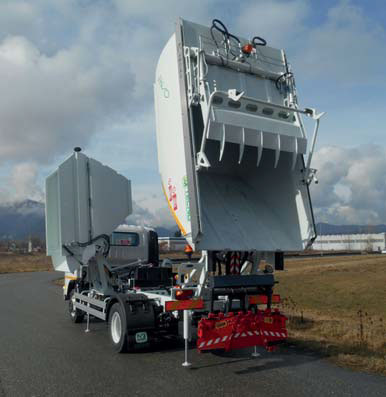

- Right-angled collection body with unloading by tipping over the dump body, fitted with side tailgate (on LH side) to facilitate operations to unload the body inside the compactors fitted with a universal loading aperture. There may be a system for side loading for pick-up, loading and emptying bins of up to 360 lt with possible sealed load-assist device of about 150 litres (optional). The attachment is compliant with Machinery Directive 2006/42/CE and is certified by an independent notified body.
| модель | Mini-compactor with rear loading
|
Collection tank right-angled
|
|---|---|---|
| Dump body volume (m3)
|
5.5
|
3.2
|
| Total mass on ground (kg)
|
6500 - 9000
|
|
| Discharge system
|
By means of dump body tip-up
|
|

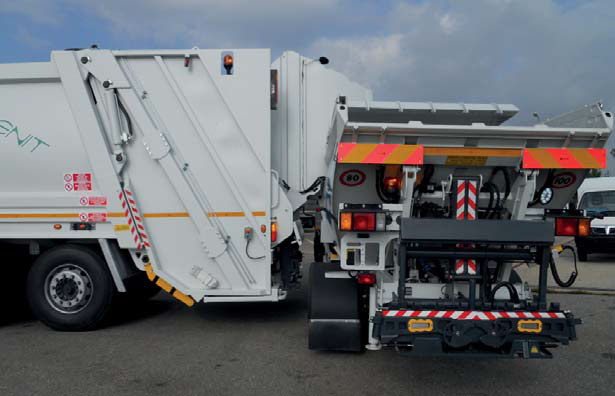

| Unloading into larger compactors
|
●
|
●
|
| Compaction system
|
Articulated single loader blade
|
- |
| Compaction cycle
|
Manual / automatic / synchronised | - |
| Adjustable compaction ratio
|
From 1:1 to 4:1
|
- |
| Video system with 7” colour monitor and Rear View Camera
|
●
|
|
| N° 2 white LED work headlights
|
●
|
|
| N°2 Flashing orange LED headlights
|
●
|
|
| Blade and brush holder
|
●
|
|
| Container lift & turn device with dual rotation and comb attachment
|
○
|
○
|
| Container lift & turn device with BOOMS for bins with DIN 1.100 lt / DIN 1.700 lt / BOLOGNA attachments
|
○
|
- |
| Rear load assist
|
○
|
- |
| Automatic pre-gripping
|
○
|
○
|
| Manual movement lid opening device
|
○
|
- |
| Sealed load assist
|
- | ○
|
● в стандартной комплектации
○ опционально
