Самосвалы urbis 2-3 вместимостью от 2,2 до 3 кубических метров идеально подойдет для небольших населенных пунктов и маленьких городов.
Характеристики
- самая миниатюрная модель
- от 2.2 кубических метров вместимость самосвала

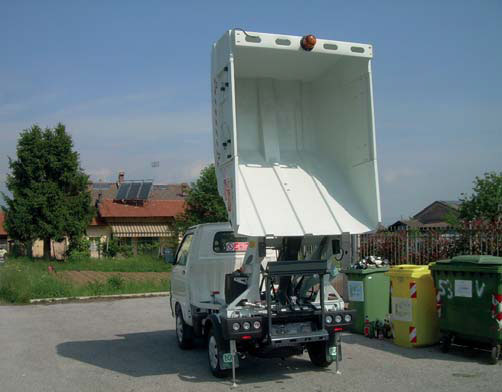

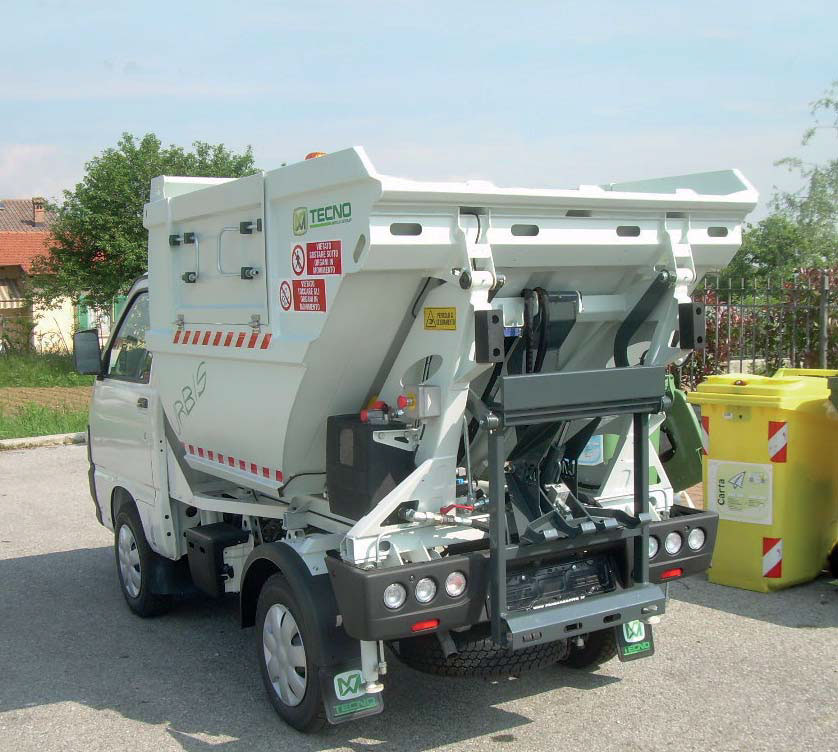

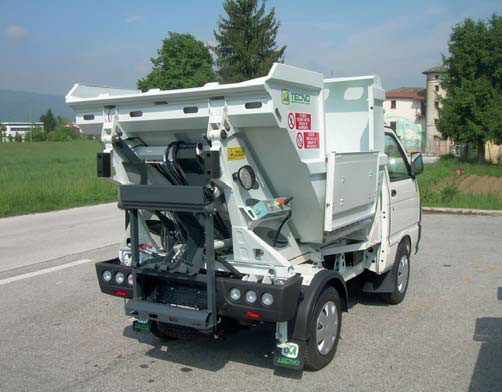

The URBIS 2 & 3 series atachment supplied by TECNOINDUSTRIE MERLO SpA comprises simple rear-loading tanks with tip-up discharge using a specifi c double-acting cylinder with a single stem. Manual tank loading by operators is facilitated by or tip-up side tailgates on the bodies with stainless steel hinge. The central rear part of the attachment houses the bin pick-up, lifting and emptying system (optional) with a possible load-assist device. Tipping kinematics and tank configuration ensure the possibility of performing coupling manoeuvres inside the rear compactors fitted with a universal loading aperture.
| модель
|
URBIS 2
|
URBIS 3
|
|---|---|---|
| Dump body volume (m3)
|
2.2
|
3.2
|
| Total mass on ground (kg)
|
From 1500 to 1700
|
2000 - 2200
|
| Discharge system
|
By means of dump body tip-up
|
|
| Unloading into compactors with universal aperture
|
●
|
●
|
| Two side hatches with safety closure
|
●
|
●
|
| Two automatic rear hydraulic stabilisers
|
●
|
●
|
| Rear white LED beacon
|
●
|
●
|
| PVC tank cover
|
○
|
○
|
| Bin turn device
|
○
|
○
|
| Hanging pushbutton panel with coil cable for tank unload on-board machine
|
○
|
○
|
| Hanging pushbutton panel with coil cable for handling the bin lift & turn device
|
○
|
○
|
| Manual emergency pump
|
○
|
○
|
| Rear load assist
|
○
|
○
|
| Rear rubber pads
|
○
|
○
|
● в стандартной комплектации
○ опционально
