Самосвалы urbis вместимостью от 5 до 7 кубических метра идеально подойдет для небольших населенных пунктов и маленьких городов.
Характеристики
- от 5 до 7 кубических метров вместимость самосвала

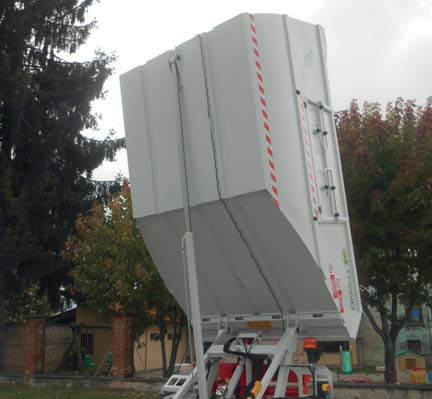

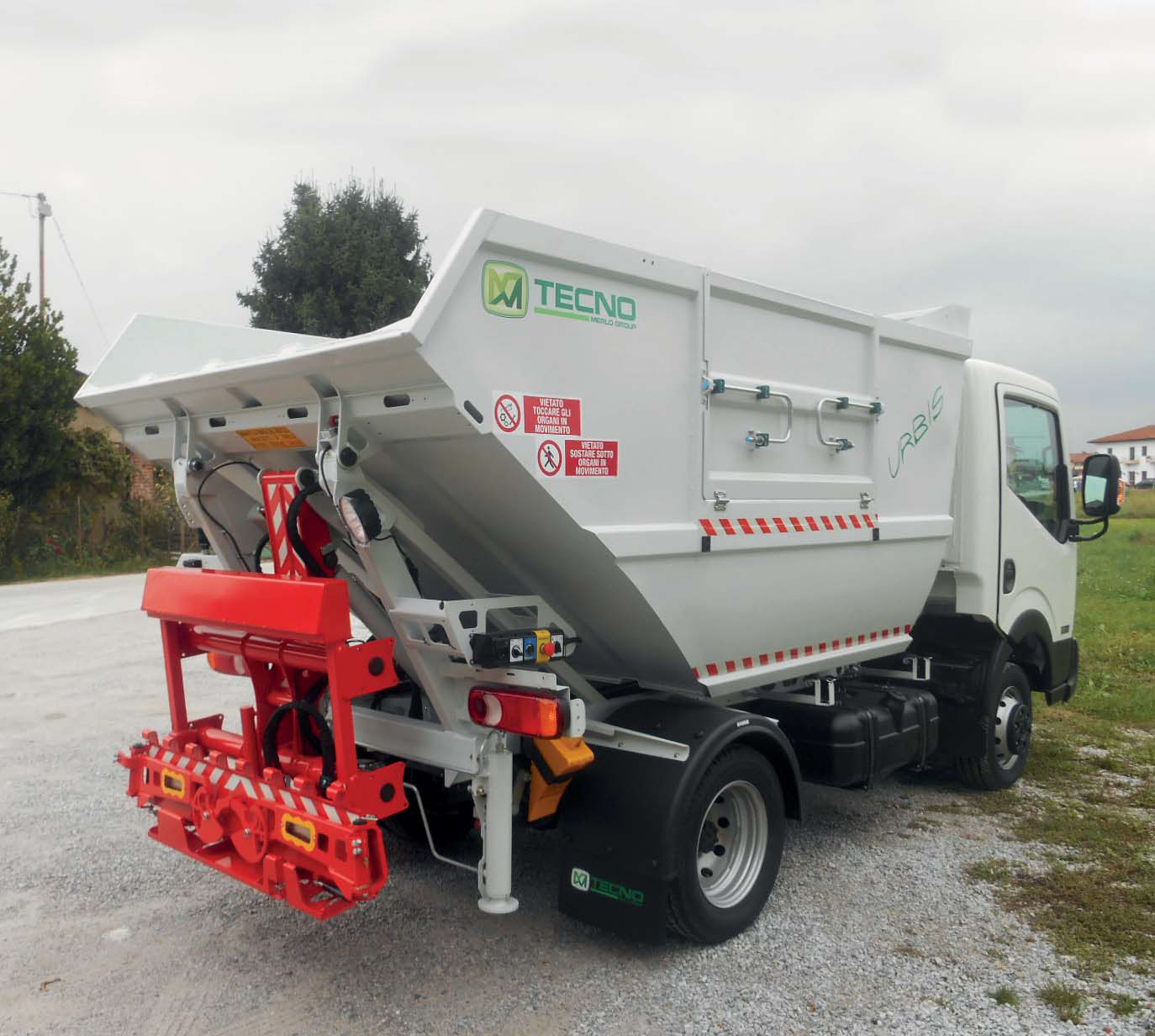

The URBIS 5 & 7 series attachment supplied by TECNOINDUSTRIE MERLO SpA comprises simple rear-loading tanks with tip-up discharge using a specifi c double-acting cylinder with a single stem. Manual tank loading by operators is facilitated by or tip-up side tailgates on the bodies with stainless steel hinge.

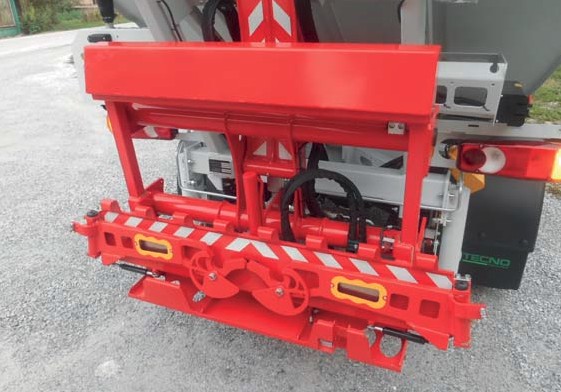

The central rear part of the attachment houses the bin pick-up, lifting and emptying system (optional) with a possible load-assist device.
Tipping kinematics and tank confi guration ensure the possibility of performing coupling manoeuvres inside the rear compactors fitted with a universal loading aperture.
| модель | URBIS 5 | URBIS 6
|
URBIS 7
|
|---|---|---|---|
| Dump body volume (m3) | 5 | 6 | 7 |
| Total mass on ground (kg) | 3,500 | 3500 - 5000
|
from 3500 to 7500
|
| Discharge system | By means of dump body tip-up | ||
| Unloading into compactors with universal aperture | ●
|
●
|
●
|
| Two side hatches with safety closure | ●
|
●
|
●
|
| Two automatic rear hydraulic stabilisers | ●
|
●
|
●
|
| Rear white LED beacon | ●
|
●
|
●
|
| PVC tank cover | ○
|
○
|
○
|
| Dual rotation bin tip-up device | ○
|
○
|
○
|
| Hanging pushbutton panel with coil cable for tank unload on-board machine | ○
|
○
|
○
|
| Hanging pushbutton panel with coil cable for handling the bin lift & turn device | ○
|
○
|
○
|
| Manual emergency pump | ○
|
○
|
○
|
| Rear load assist | ○
|
○
|
○
|
| Rear rubber pads | ○
|
○
|
○
|
● в стандартной комплектации
○ опционально
