These mini packer trucks are equipped with a simple progressive shovel and a dump body which is unloaded by means of an ejection shield. Their load capacity is 6 cubic metres.
Характеристики
- вместимость от 7.2 квадратных метров

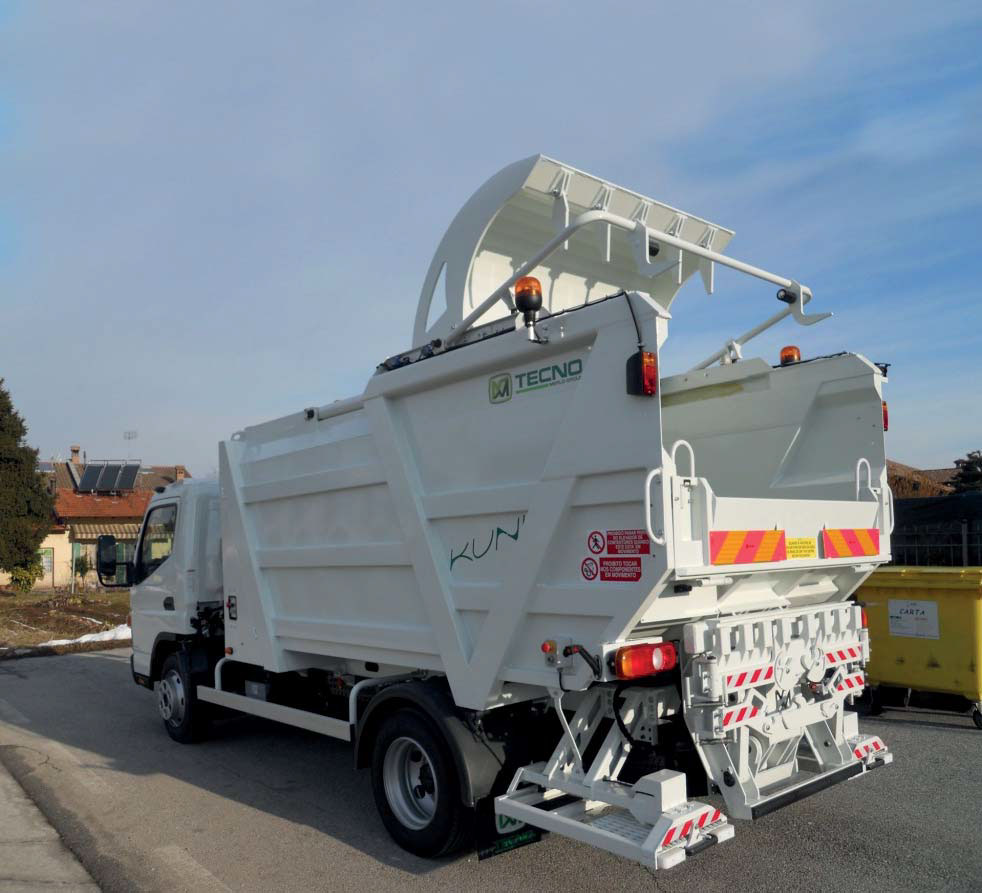

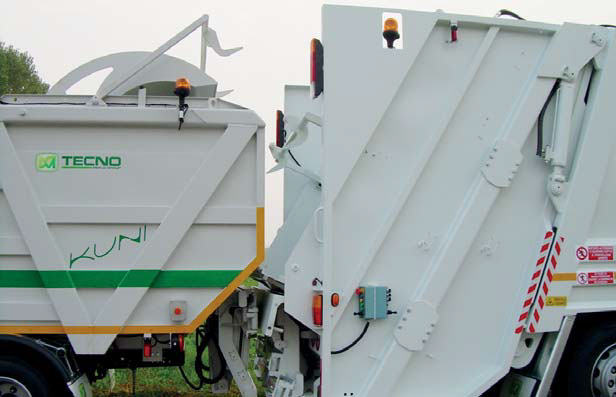

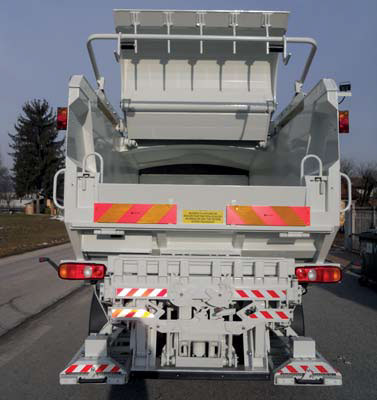

The KUNI range of attachment supplied by TECNOINDUSTRIE MERLO S.p.A.comprises rear loading mini-compactors with a single dump body and unloading via the expulsion bulkhead; The KUNI is fitted with a simple single blade compaction system comprising a rotary connected to a small conrod ensuring a larger angle of rotation during the waste crushing movement. A bin pick-up, lifting and emptying system (optional) can be installed in a central position.
The attachment is compliant with Machinery Directive 2006/42/CE and is certified by an independent notified body.
| модель | KUNI 7
|
|---|---|
| Dump body volume (m3)
|
7.2
|
| Waste container dump body
|
Single body structure
|
| Recommended set-ups on chassis with T.M.G (total mass on ground)
|
7000 ÷ 8500 kg
|
| Compaction system
|
Simple, progressive loader
|
| Cycle
|
Manual / Single / Semi-automatic
|
| Waste expulsion
|
Mobile bulkhead
|
| Mini-compactor designed and built
|
with the possibility of performing waste transfer operations
|
| Container turning device in loading aperture zone
|
In central position starting from bottom
|
| CCTV system with 7” colour monitor and Rear View Camera
|
●
|
| Mobile teeth on blade
|
●
|
| Rear tailgate can be lowered to facilitate manual loading
|
●
|
| Container pick up and turn device with COMB attachment
|
○
|
| Container pick up and turn device with BOOM attachment for bins with DIN 1100 / DIN 1700 fitting
|
○
|
| Container pick up and turn device with BOOM attachment for bins with BOLOGNA fitting
|
○
|
| N. 1 or 2 rear platforms for carrying operators
|
○
|
| Bin lid opening device to EN 840-3:2013 standard
|
○
|
● в стандартной комплектации
○ опционально
